1、采用雙螺桿壓縮，主要用于艦船及出口項目；
2、PLC微電腦智能控制，操作維護簡單；
3、24小時連續運行；

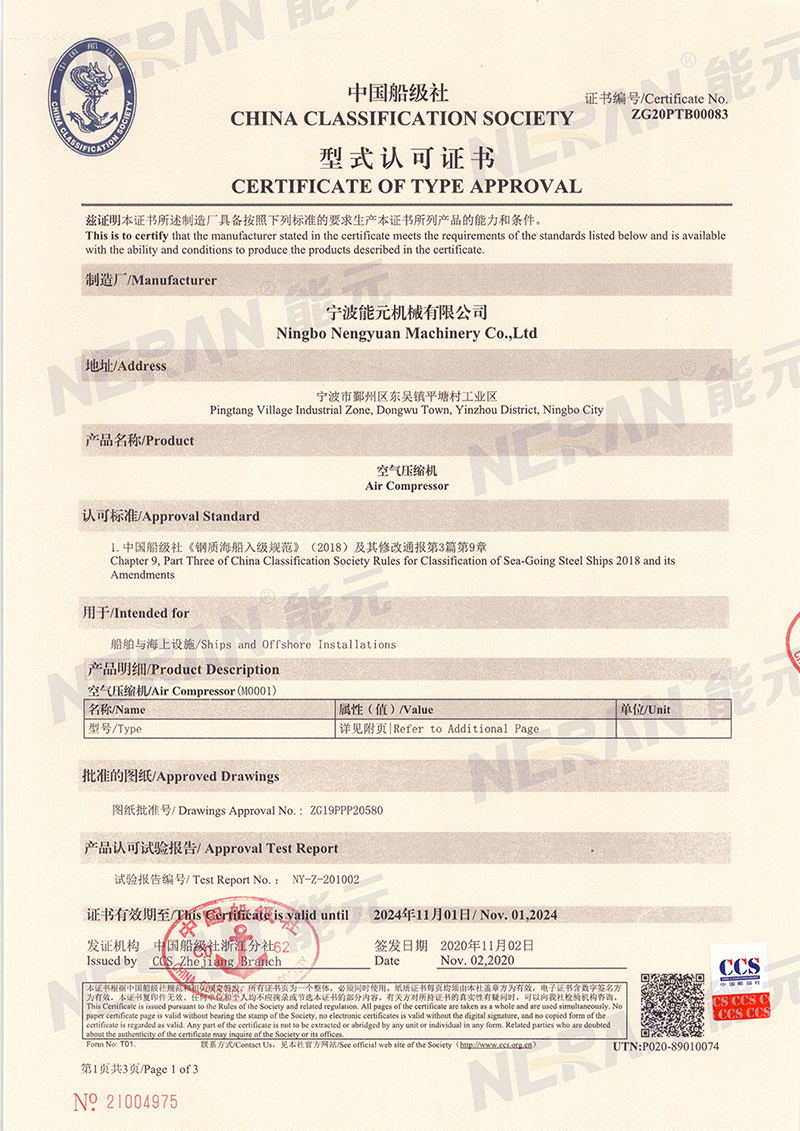

4、提供船級社認證證書；
5、根據客戶要求訂制；
| 序號 | 產品系列 | 產品型號 | 排氣壓力 MPa | 排氣流量 m3/min | 冷卻方式 | 額定轉速 rpm | 頻率 HZ | 電機功率 kW |
| 1 | LGF | LGF-10-C | 0.8~1.3 | 0.8~1.1 | 風冷 | 2915/3520 | 50/60 | 7.5 |
| 2 | LGF-15-C | 1.2~1.6 | 2930/3540 | 11 | ||||
| 3 | LGF-20-C | 1.7~2.4 | 2930/3540 | 15 | ||||
| 4 | LGF-25-C | 2.3~3 | 2925/3550 | 18.5 | ||||
| 5 | LGF-30-C | 2.6~3.6 | 2945/3560 | 22 | ||||
| 6 | LGF-40-C | 3.7~5 | 2950/3560 | 30 | ||||
| 7 | LGF-50-C | 4.6~6.8 | 2955/3570 | 37 | ||||
| 8 | LGF-60-C | 5.5~8 | 2960/3580 | 45 | ||||
| 9 | LGF-75-C | 6.5~9.8 | 2960/3580 | 55 | ||||
| 10 | LGF-100-C | 9~13.1 | 2965/3580 | 75 | ||||
| 11 | LGF-125-C | 11.6~15.5 | 2965/3580 | 90 | ||||
| 12 | LGF-150-C | 12.1~20 | 2970/3580 | 110 | ||||
| 13 | LGF-180-C | 15.4~23.2 | 2975/3580 | 132 | ||||
| 14 | LGS | LGS-30-C | 0.8~1.3 | 2.6~3.6 | 水冷 | 2945/3560 | 50/60 | 22 |
| 15 | LGS-40-C | 3.7~5 | 2950/3560 | 30 | ||||
| 16 | LGS-50-C | 4.6~6.8 | 2955/3570 | 37 | ||||
| 17 | LGS-60-C | 5.5~8 | 2960/3580 | 45 | ||||
| 18 | LGS-75-C | 6.5~9.8 | 2960/3580 | 55 | ||||
| 19 | LGS-100-C | 9~13.1 | 2965/3580 | 75 | ||||
| 20 | LGS-125-C | 11.6~15.5 | 2965/3580 | 90 | ||||
| 21 | LGS-150-C | 12.1~20 | 2970/3580 | 110 | ||||
| 22 | LGS-180-C | 15.4~23.2 | 2975/3580 | 132 | ||||
| 23 | LGS-220-C | 20.2~27 | 2980/3580 | 160 | ||||
| 24 | LGS-250-C | 21.8~32.3 | 2980/3580 | 185 | ||||
| 25 | LGS-300-C | 28.2~38.4 | 2980/3580 | 220 | ||||
| 26 | LGS-340-C | 33.3~42.6 | 2980/3580 | 250 |
